Product Details:

• Product frequency: 2.4GHz (support multi-vehicle competition)
• Product material: Hardware/electronic/plastic
• Wheelbase: 165mm Wheelbase: 155mm Wheel diameter :67mm
• Single weight (including battery) Kg: 0.75
• Single package weight (including color box) Kg: 1.5
• 7.4V 1500mAH Weight g: 91.7
• Gross/net weight (kg): 13.5/12
• Remote control specifications (cm): 12.6*8.2*18.5
• Product specifications (cm): 25*19*11
• Color box size (cm): 26.3*16.5*22
• Product speed (km/h): 28
• Product Battery: 7.4V 1500mAH lithium-ion battery (T plug)
• Remote control battery: 3* “AA” (to be purchased separately)
• Charging: USB cable charger
• Remote control time (minutes): 35-40 minutes (continuous running at full speed)
• Charging time (min): 180-210 (USB balance charge)
• Remote control distance (m): ≥80
• Servo line 5,17g

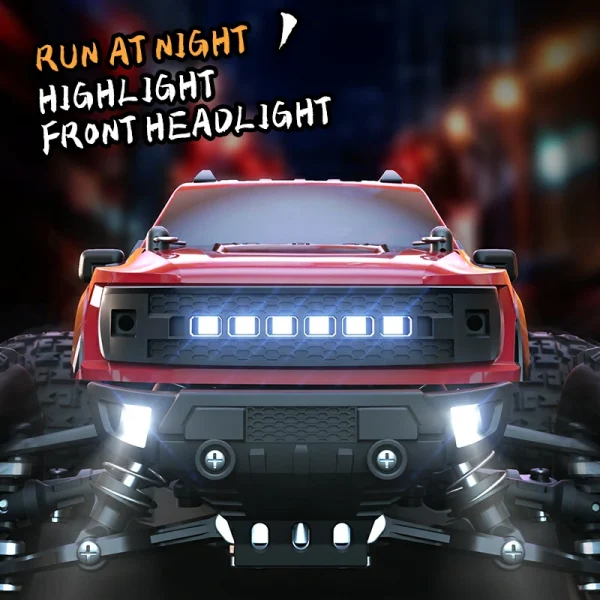

• Headlight configuration: LED front light white light, central white light

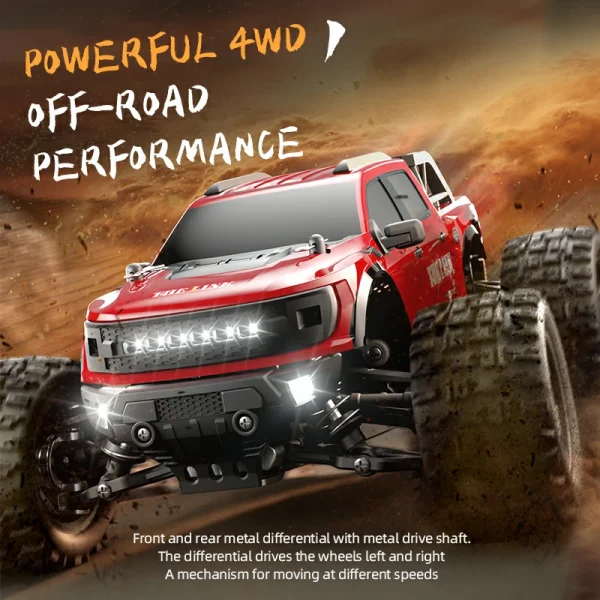

• Differential structure: Metal differential (planetary gear)

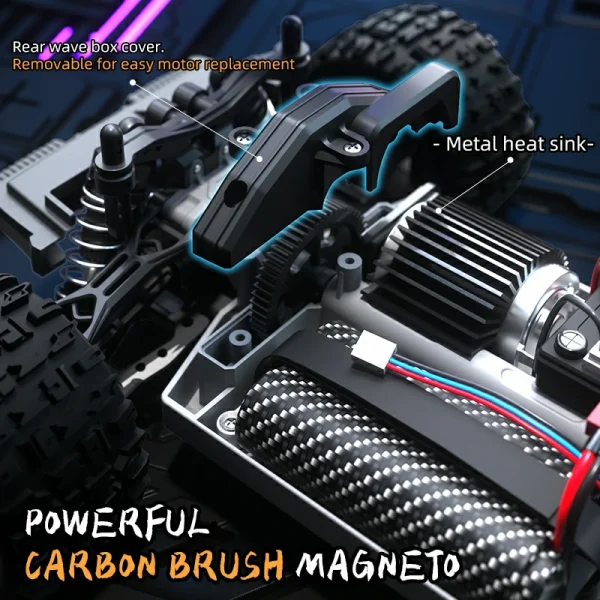

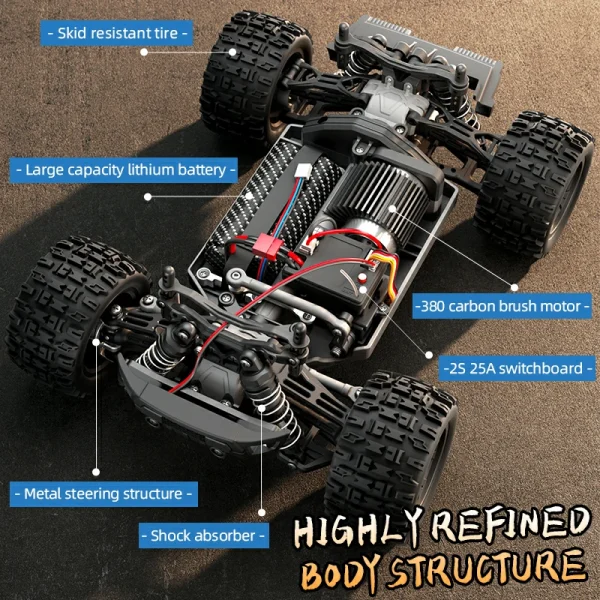

• Motor: RC380 high speed carbon brush strong magnetic (magnetic protection + heat sink)

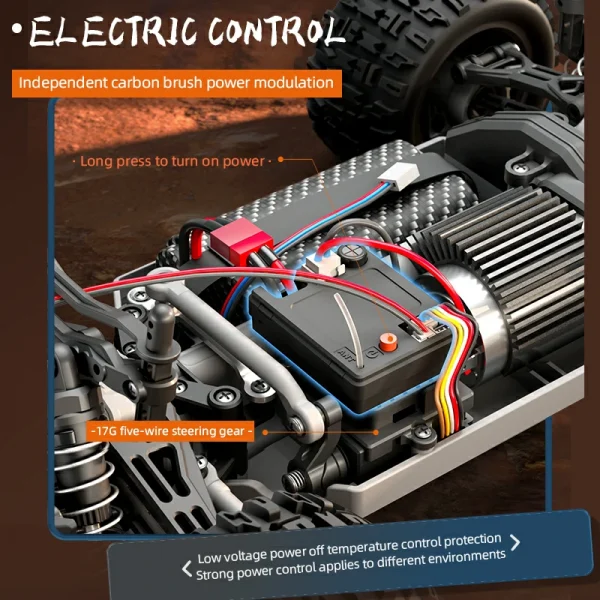

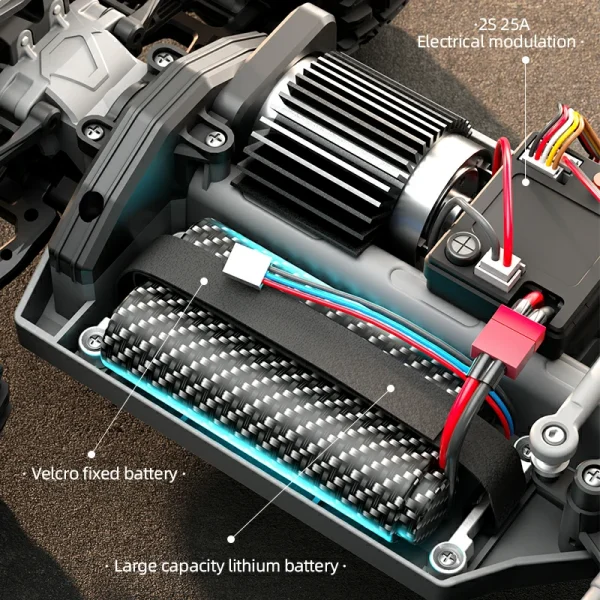

• Electric modulation/reception: 25A 2S integrated control (anti-splash)
• Remote control category: Full proportional synchronous control system (gun control)

Product configuration:

1. Complete vehicle.
2. Remote control.
3. Instructions in Chinese and English.
4. Lithium battery.
5. USB charger.
6. Shock absorbing adjustment buckle.
7. Metal latch.
8. Phillips screwdriver.

Protection function

1. Charging; 2. Stuck; 3. High temperature; 4. Low Pressure

1. Charging protection: constant current and constant voltage balanced charging, the protection function of the battery overcharge and overcurrent.
2. Motor anti-jamming protection: overload work, the motor stops working.
3. High temperature protection: When the operating temperature is higher than the set condition, the drive control circuit stops working, and the temperature drops to a safe value after the resumption of work.
4. The power down voltage power off function, the battery is lower than 6.3-6.4V, automatic power off, to prevent the battery over discharge and damage.

Product parameters:

1. The use of simulation structure design, with real car control feeling, to achieve full scale stepless transmission, high-speed driving, rapid acceleration, deceleration, braking, reversing, left, right turn.
2. Applicable site: flat land, sand, mud, grass.

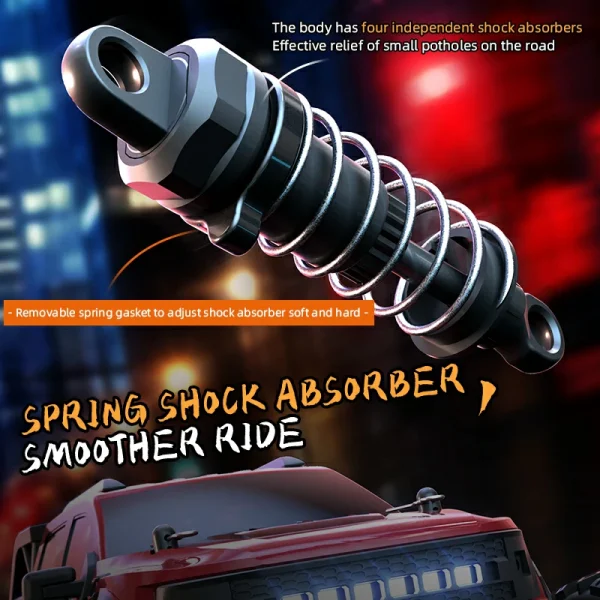

3. Four-wheel drive: front and rear vertical spring shock absorption, double fork arm independent suspension system.
4. Remote control system: 2.4g full proportion synchronous remote-control system. Full throttle/steering.
5. Electrical regulation: 2.4g anti-splash four-way 30a integrated electrical regulation/reception.
6. Drive shaft structure: front wheel cross ball head universal joint drive shaft, rear wheel split dog bone drive shaft.
7. Steering gear parameters: five-line 17g steering gear.
8. Battery parameters: 7.4v, 18650-1500mah li-ion battery (t plug).
9. Ball bearings: the whole car uses 15 ball bearings.

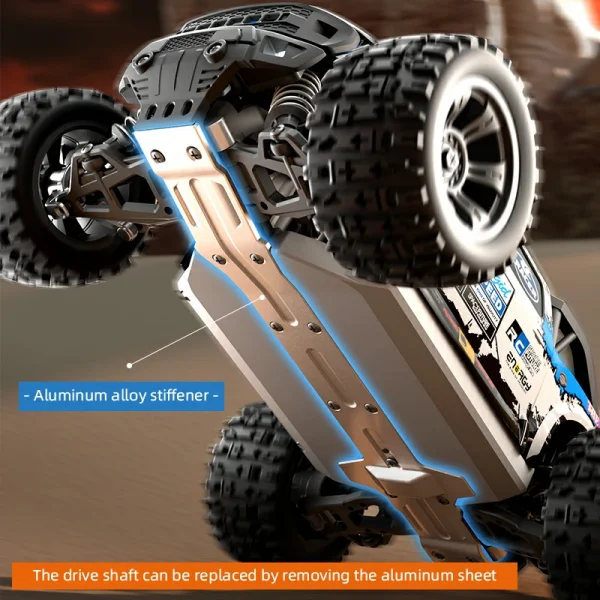

10. Metal parts: metal bottom reinforcement plate, metal differential, metal gear, metal steering knuckle, metal front and rear arm code, metal drive shaft.
11. Car shell: car shell with high toughness explosion-proof pvc car shell; the shell is equipped with anti-loss silicone clasp.
12. Lighting: equipped with led headlights; (three gear mode: steady on, slow blinking, fast blinking).
13. Other equipment: equipped with head-up wheel.

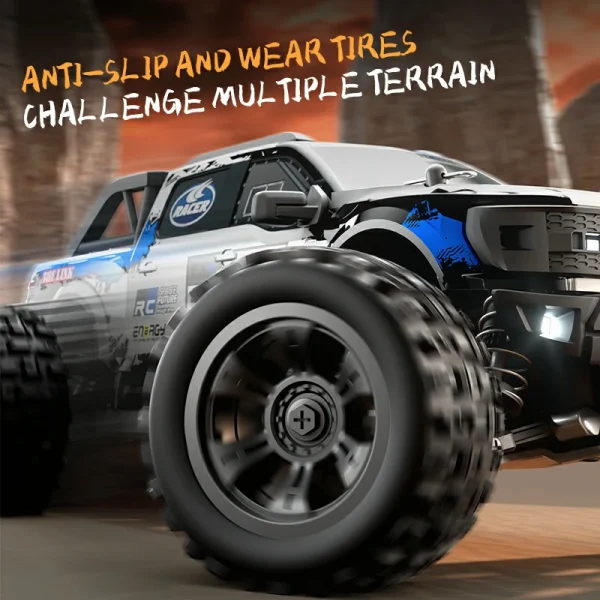

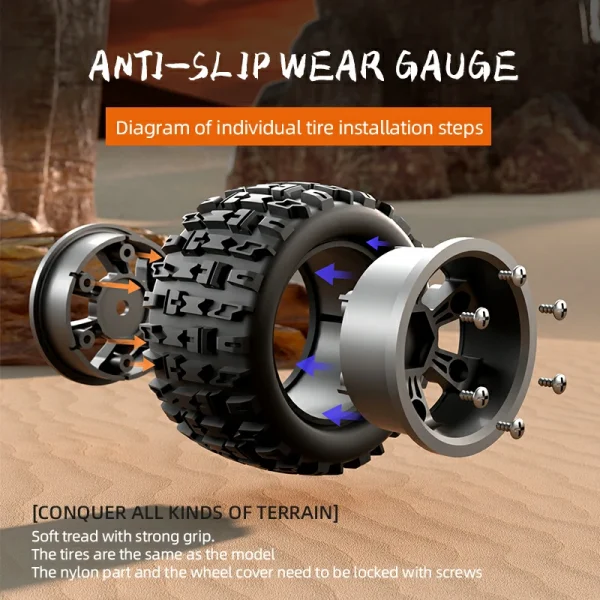

14. Other equipment: simulation big foot tire, strong grip.
